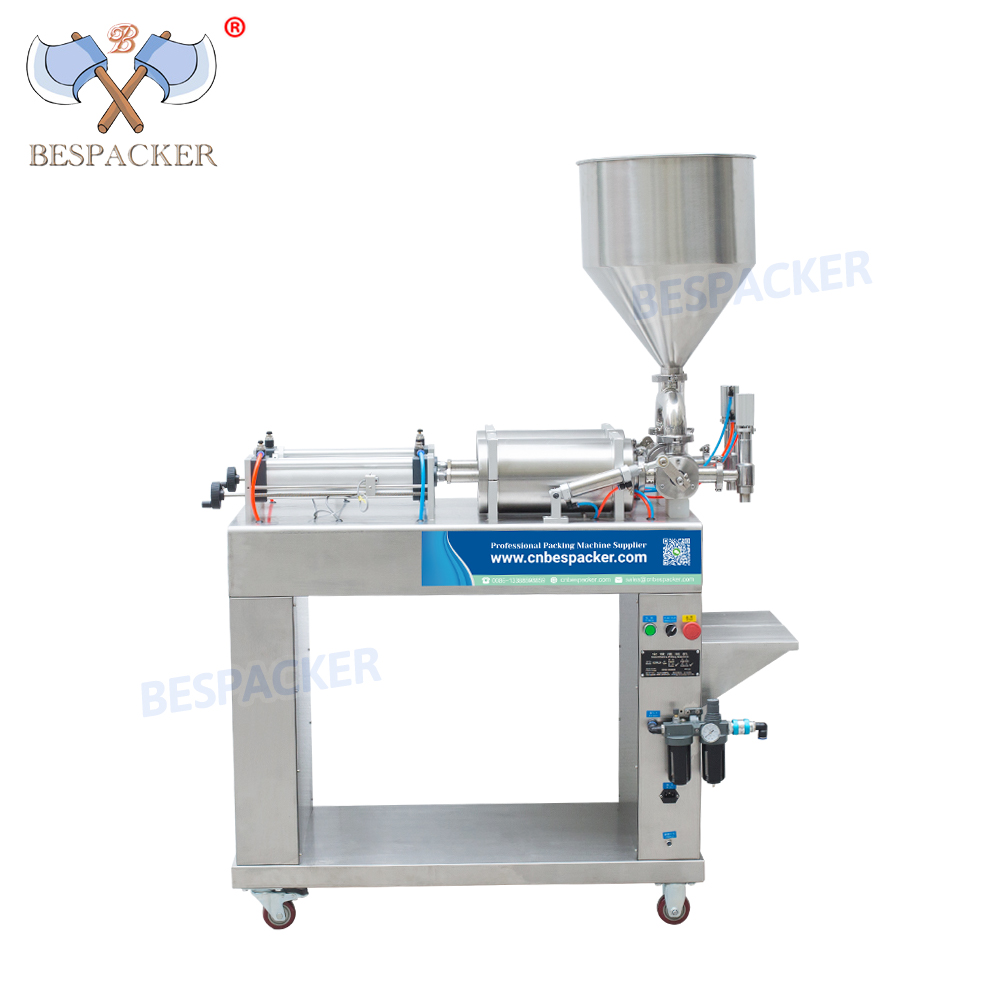

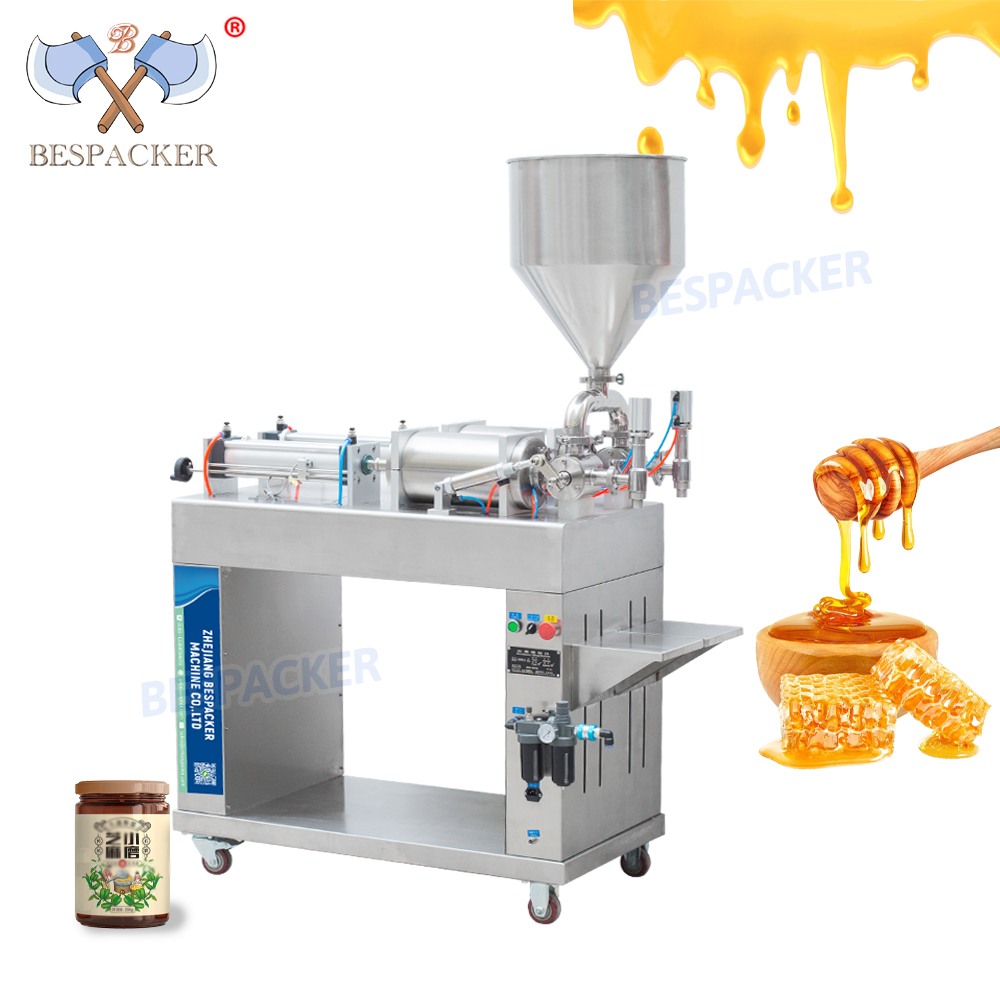

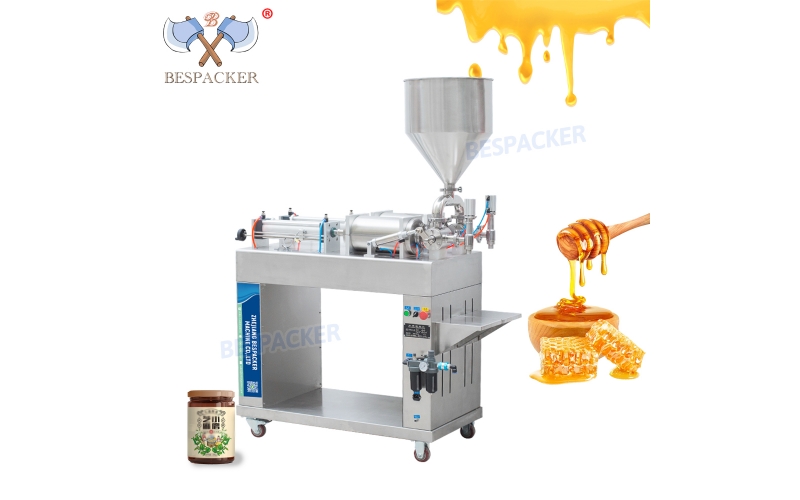

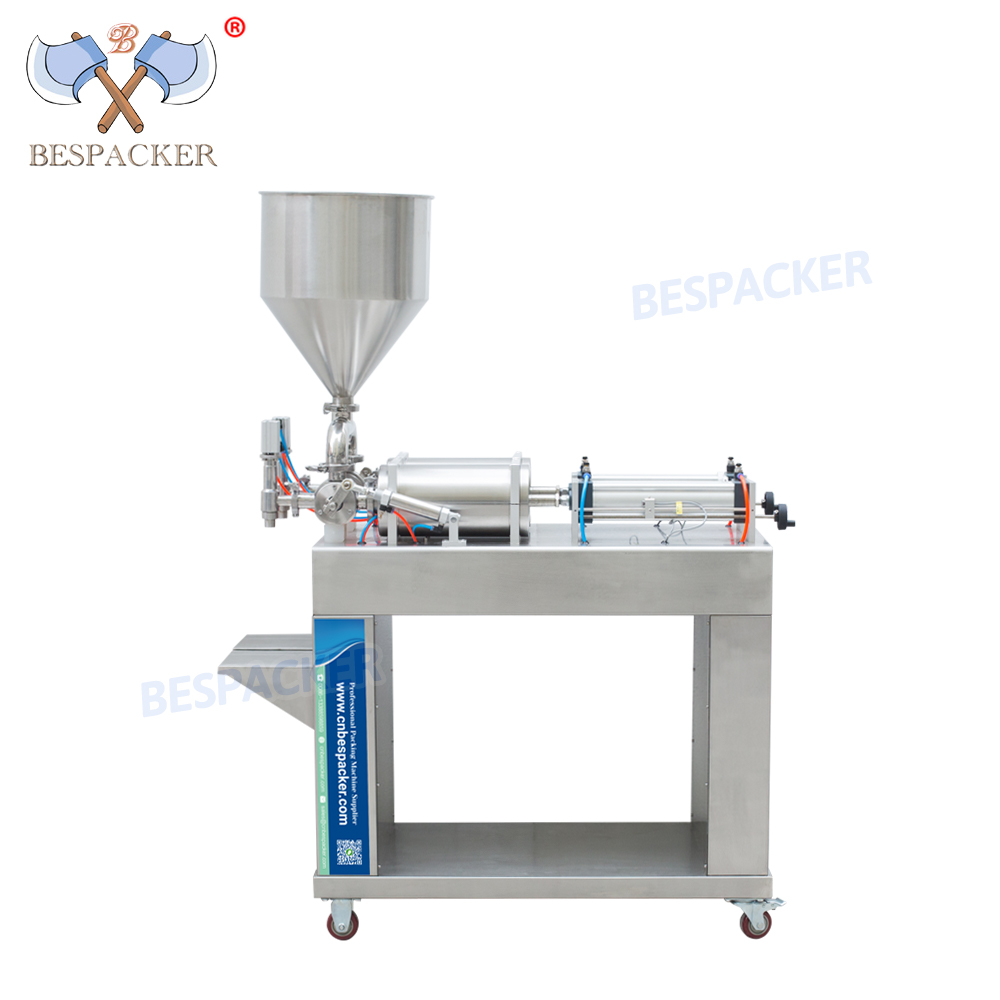

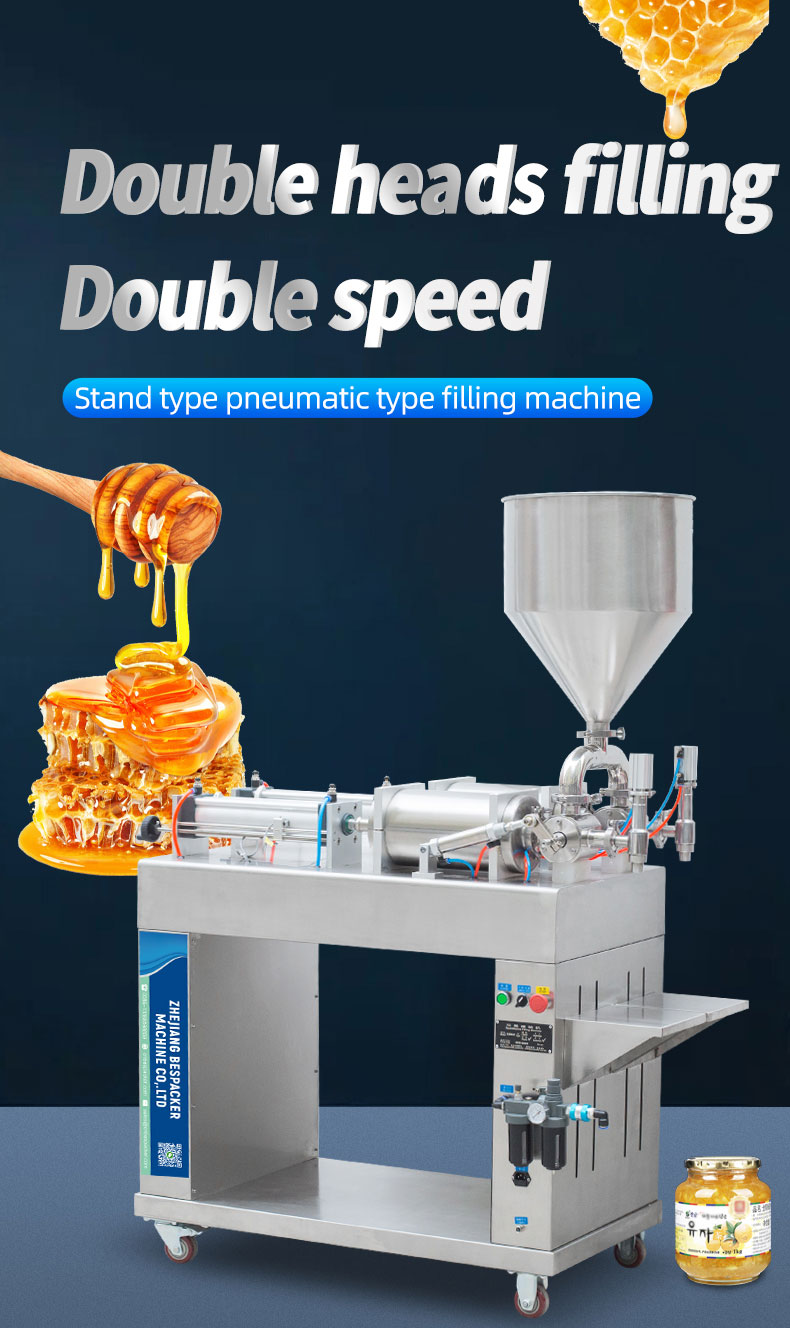

G2WLD-100 Stand type double heads paste filling machine

Find best packing machines by genuine supplier of China - Zhejiang Bespacker Machine Co.,Ltd.

0
关闭
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

Bespacker G2WLD 2-nozzle hand wash dishwashing liquid filling machine

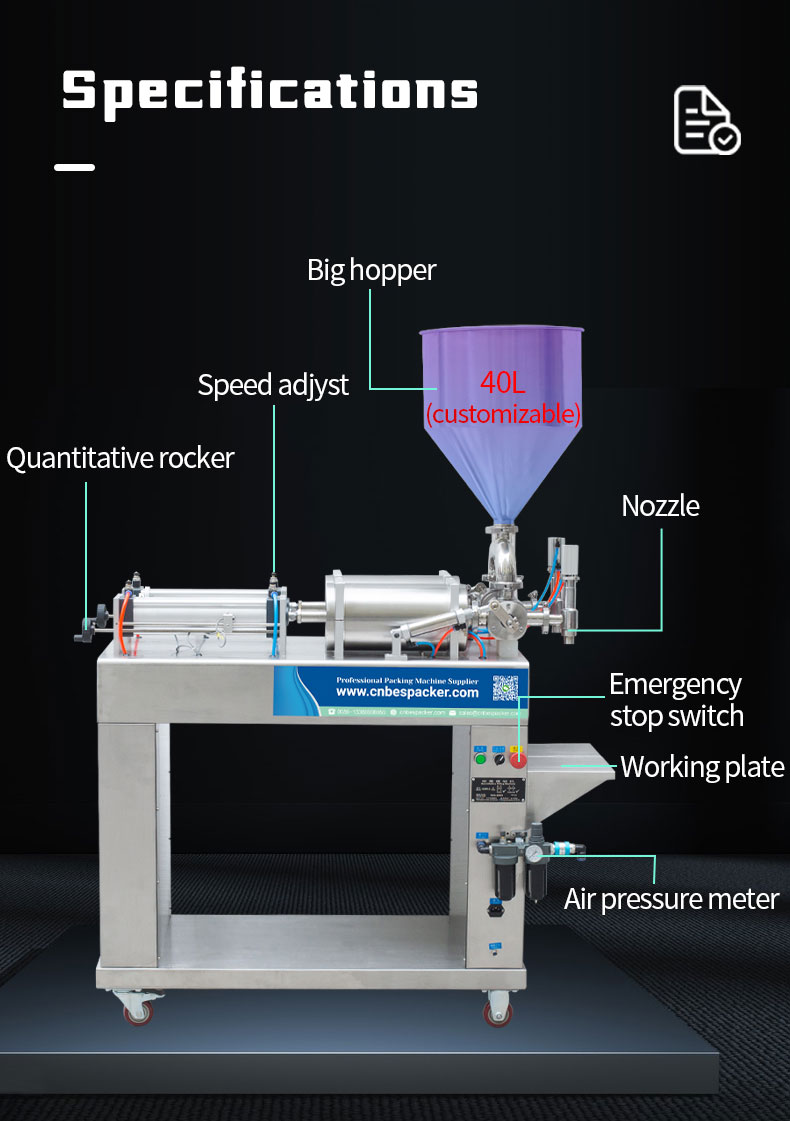

Description of parameters of filling machine:

Model

Voltage

Filling volume

Filling speed

Filling accuracy

Dimension

Weight

Type of packages

G2WLD

110V/220V

5-100ml

1-30bottles/min

≤±1%

97*45*100.5cm

60kg

Plywood boxes

10-300ml

99.5*55*140cm

65kg

Plywood boxes

50-500ml

99.5*55*140cm

65kg

Plywood boxes

100-1000ml

99.5*55*134cm

85kg

Plywood boxes

500-2500ml

109*55*138cm

100.5kg

Plywood boxes

1000-5000ml

111*70*133.5cm

152.5kg

Plywood boxes

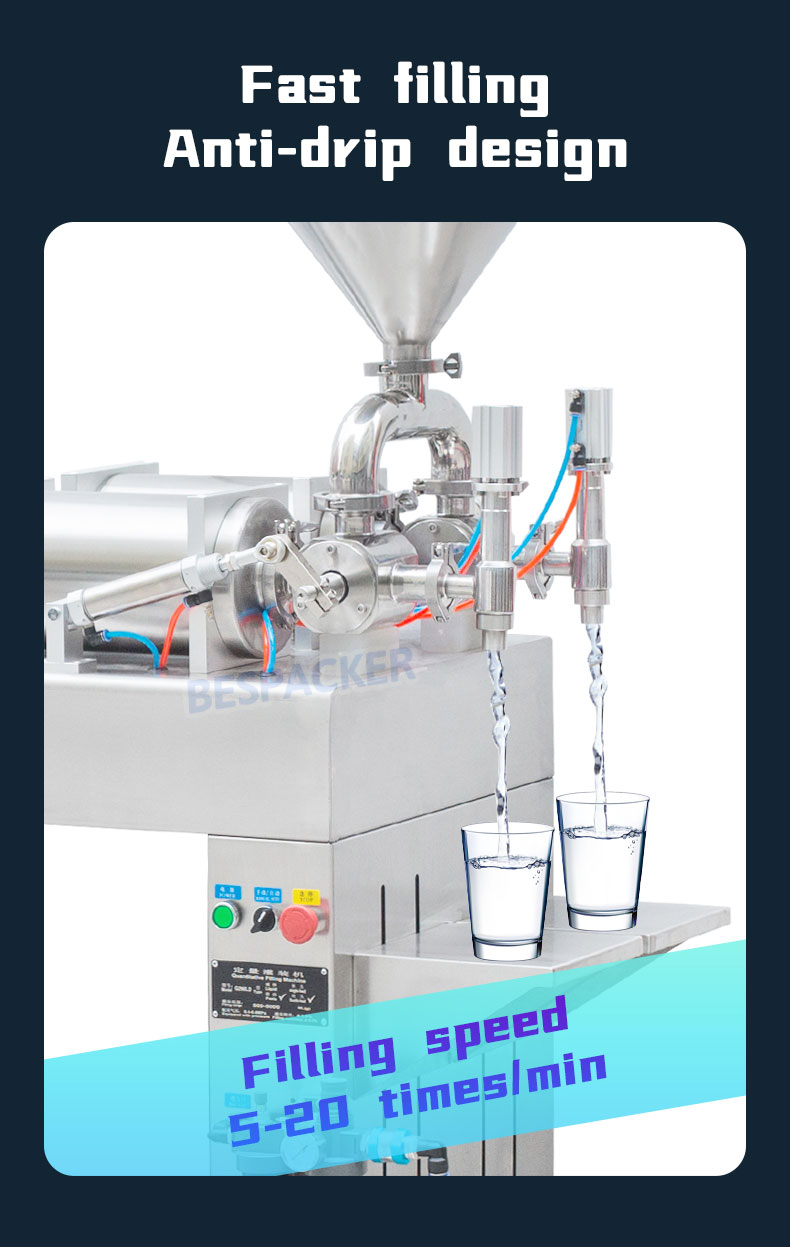

Precise metering control.
Filling machine with fixed flow channel parameters, control the filling time to achieve different measurement of filling.
A. Pneumatic valve filling precise time can be set to 0.01 seconds, themeasurement accuracy can be controlled in the ± 1% error range, reducingunnecessary material loss, improve user economic benefits.
B. Thevolume of filling, can adjust the initial filling to the requiredvolum, and then fine-tuning, you can get the ideal filling machinemeasurement accuracy.

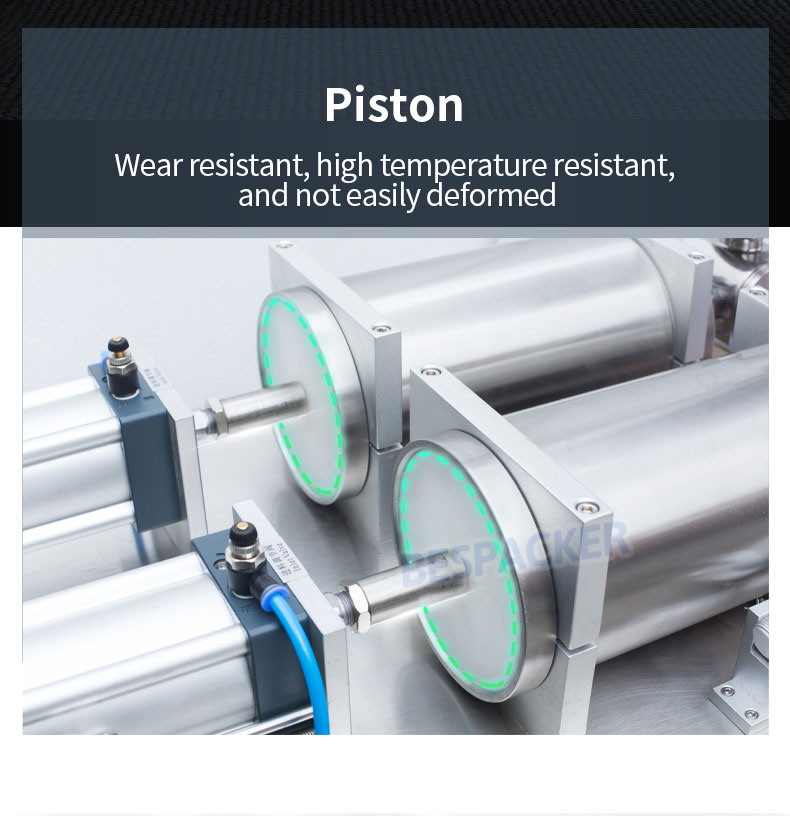

Workingprinciple: table type liquid single head filling machine is a highviscosity flow filling machine developed by our company, it is toextract and made of high viscosity material to drive the three passprinciple of a piston and rotary valve through the cylinder, and usemagnetic switch to control the cylinder stroke, which can adjust thefilling volume.
