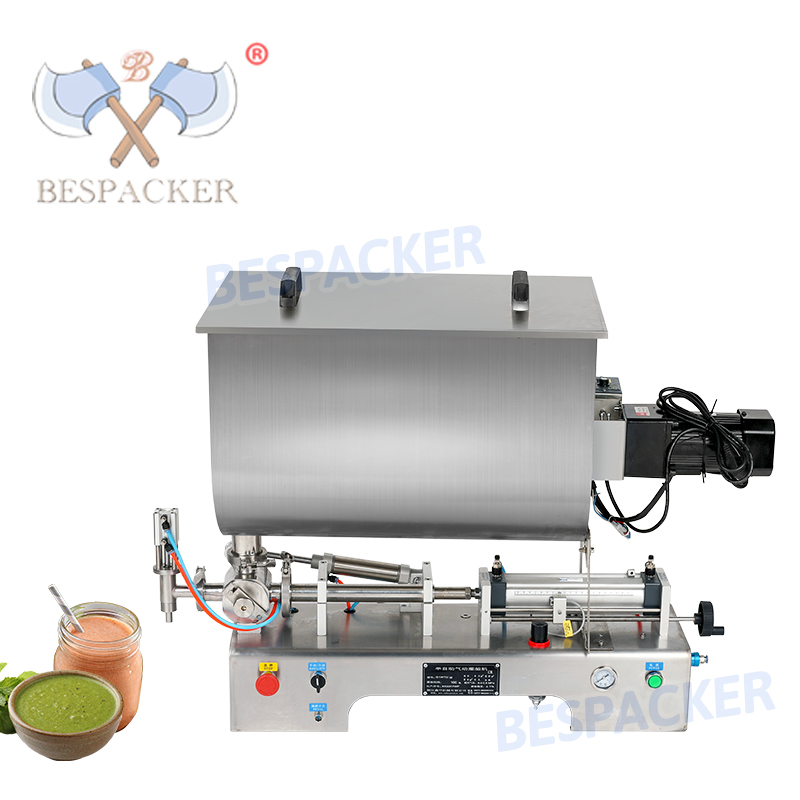

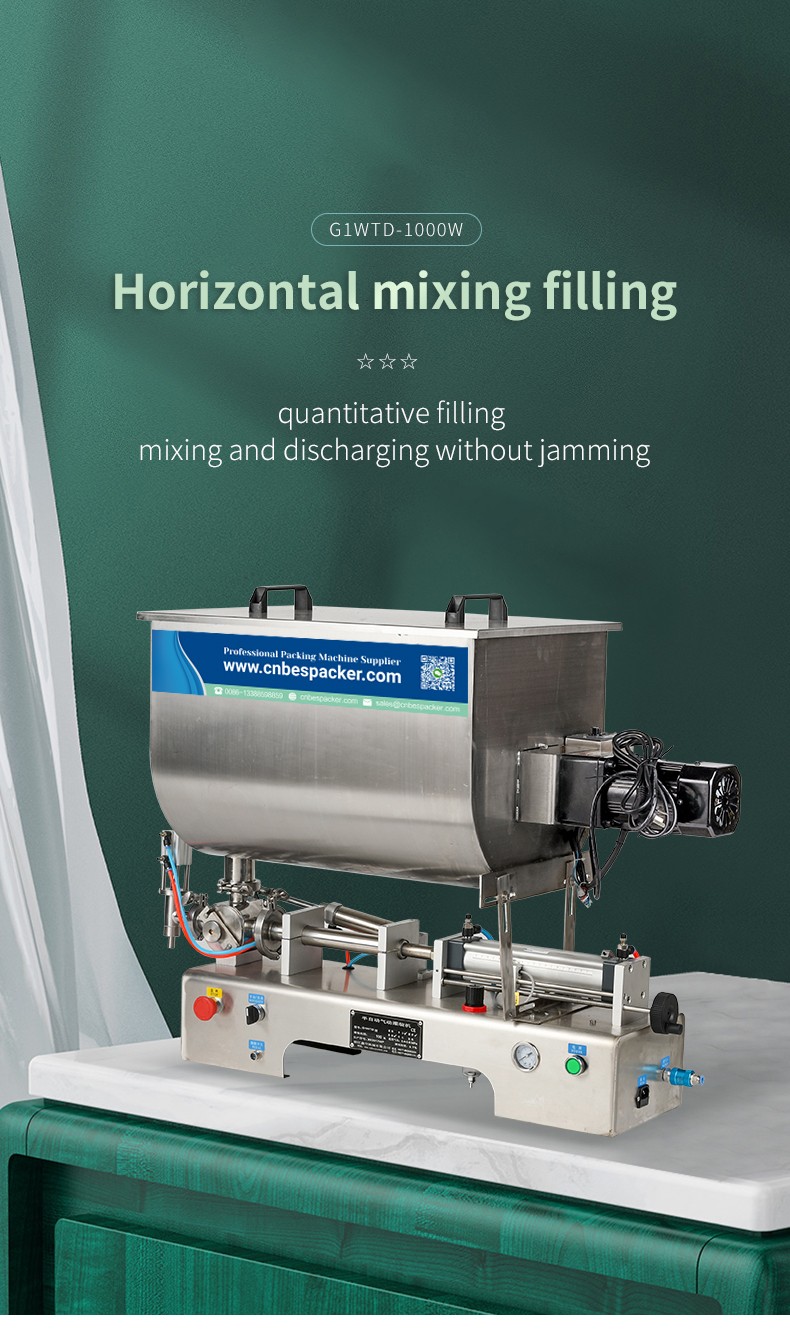

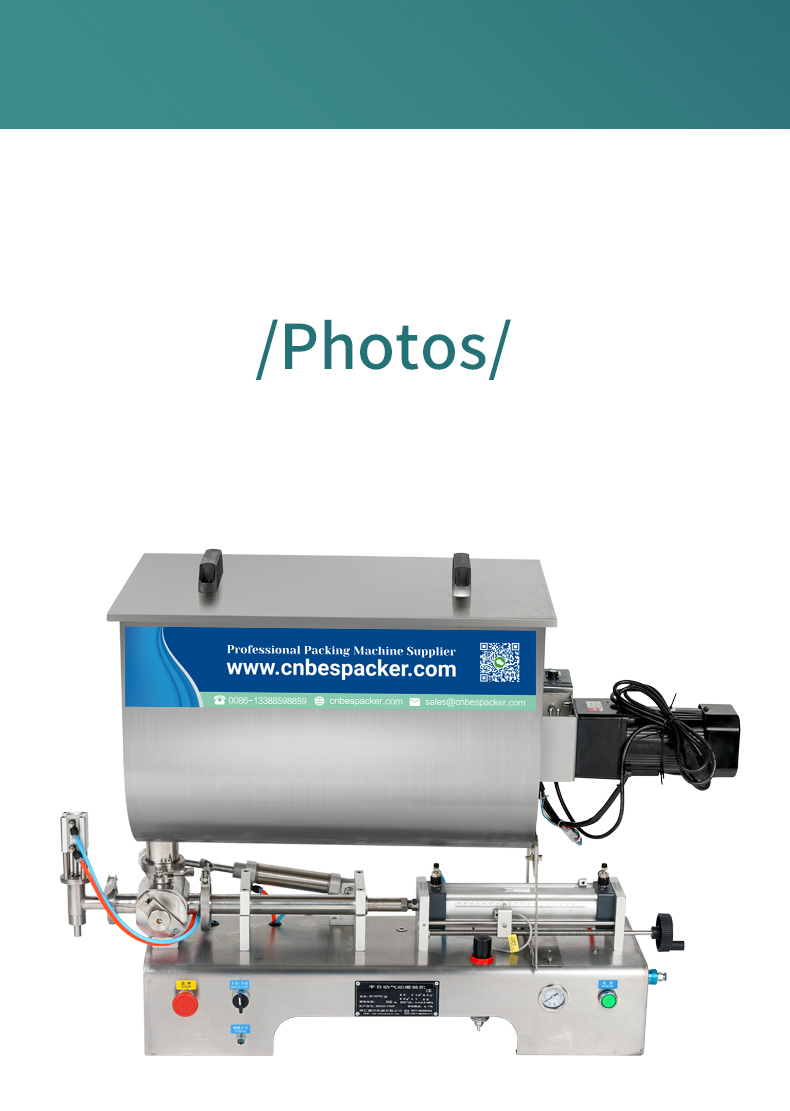

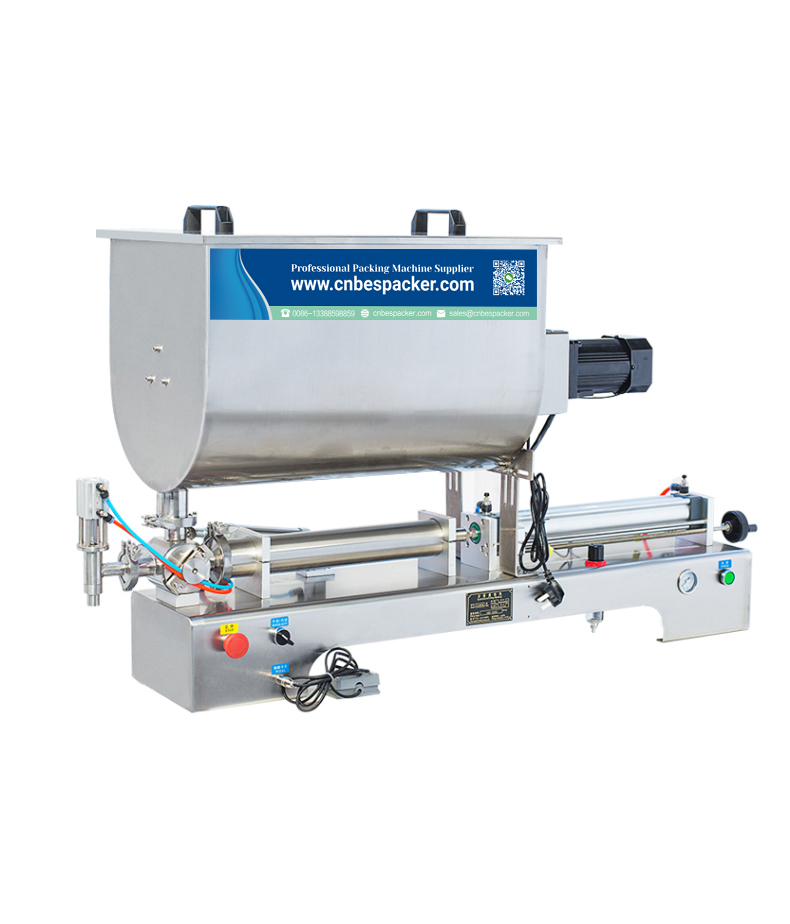

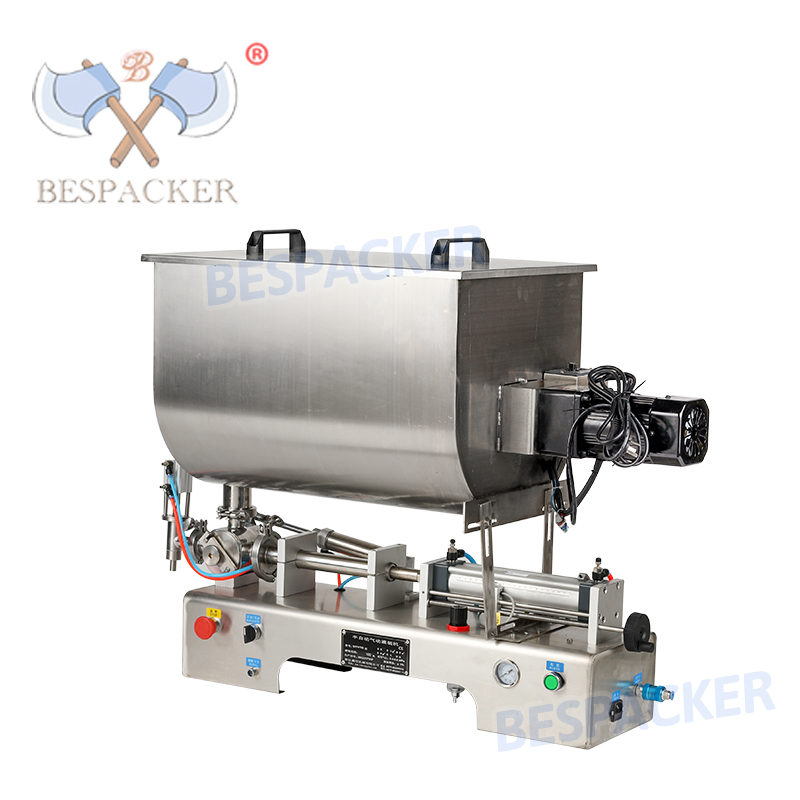

G1WTD-1000W Horizontal cream filling machine with mixer

Find best packing machines by genuine supplier of China - Zhejiang Bespacker Machine Co.,Ltd.

关闭

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

Bespacker G1WTD new type paste cream honey filling machine with mixer

Description of parameters of filling machine:

Model	Voltage	Filling volume	Filling speed	Filling accuracy	Dimension	Weigh	Type of packages
G1WTD with mixer	110v/220v	5-100ml	1-30bottles/min	≤±1%	Machine: 953234cm	23kg	Carton
		5-100ml			Hopper: 454677cm	17.5kg	Plywood boxes
		10-300ml			Machine: 953234cm	23kg	Carton
		10-300ml			Hopper: 454677cm	17.5kg	Plywood boxes
		50-500ml			Machine: 953234cm	23kg	Carton
		50-500ml			Hopper: 454677cm	17.5kg	Plywood boxes
		100-1000ml			Machine: 1273235cm	28kg	Carton
		100-1000ml			Hopper: 454677cm	17.5kg	Plywood boxes
		500-2500ml			Machine: 1193842cm	41kg	Carton
		500-2500ml			Hopper: 454677cm	17.5kg	Plywood boxes
		1000-5000ml			Machine: 1233842cm	44kg	Carton
		1000-5000ml			Hopper: 454677cm	17.5kg	Plywood boxes

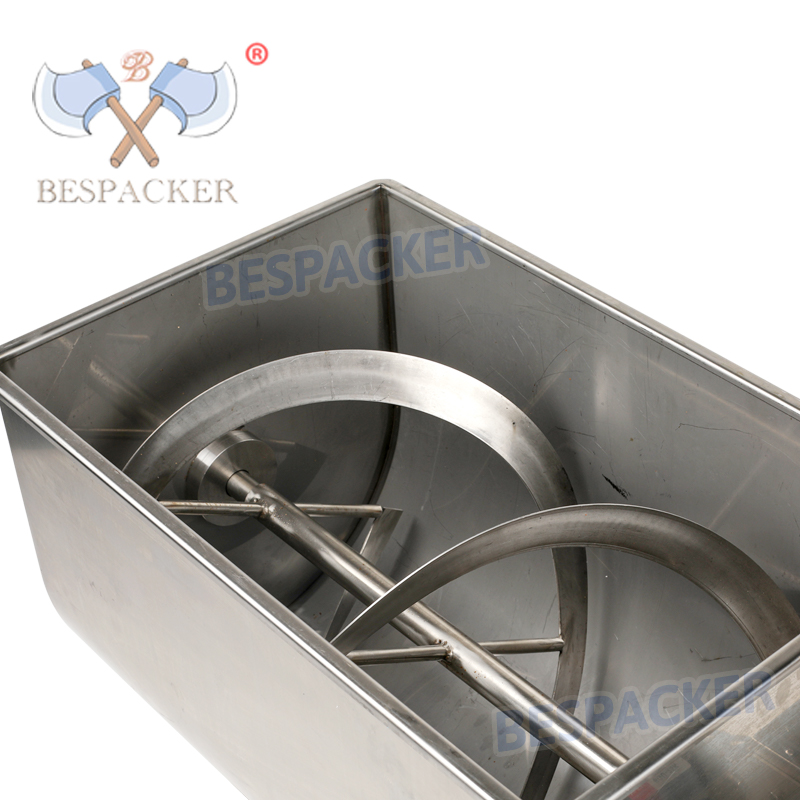

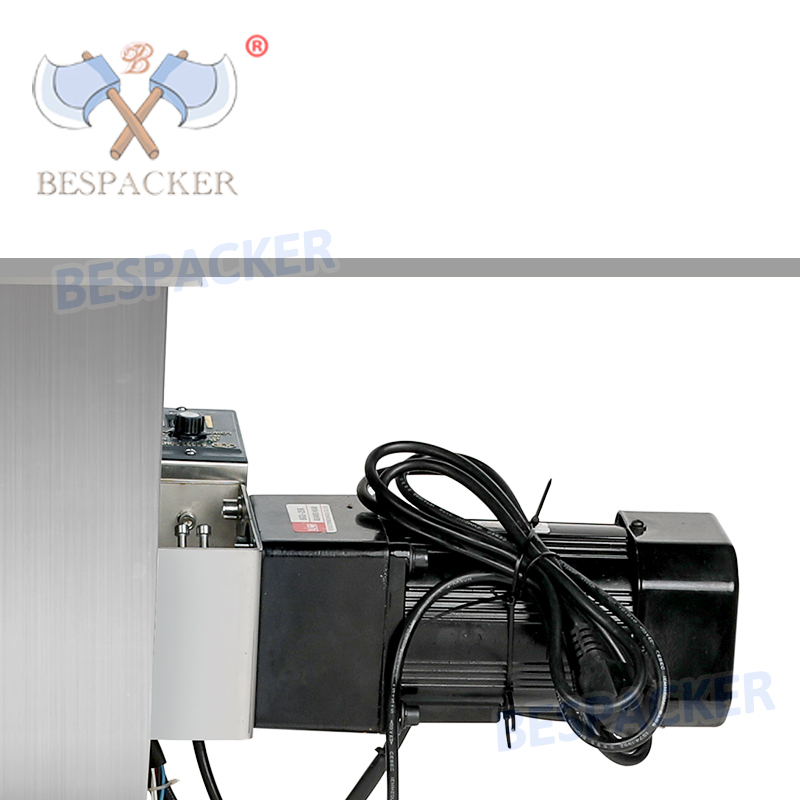

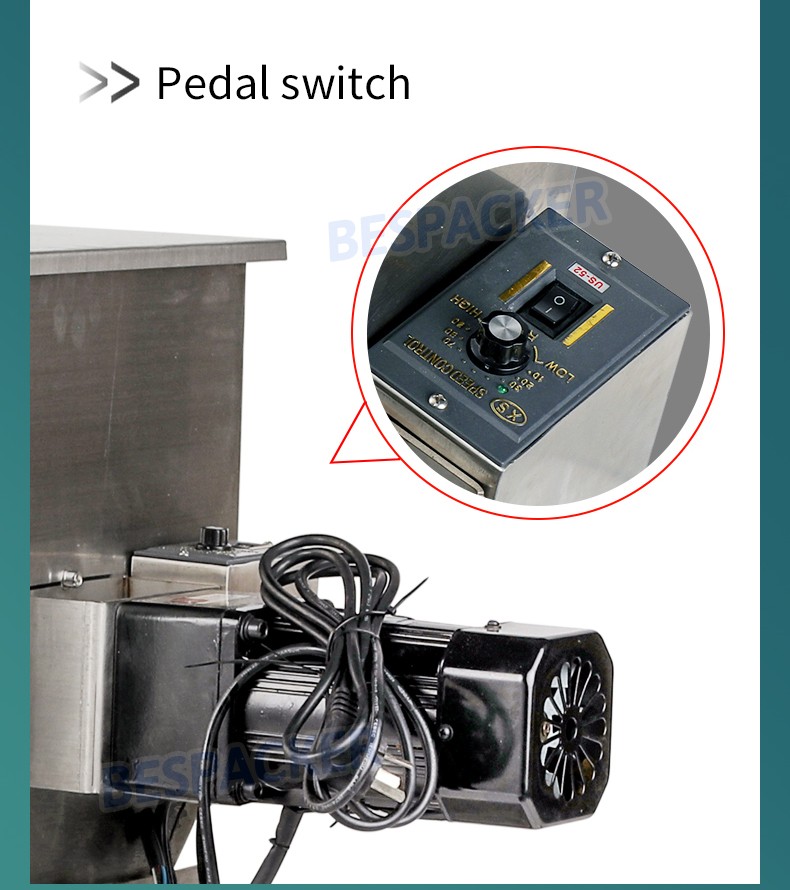

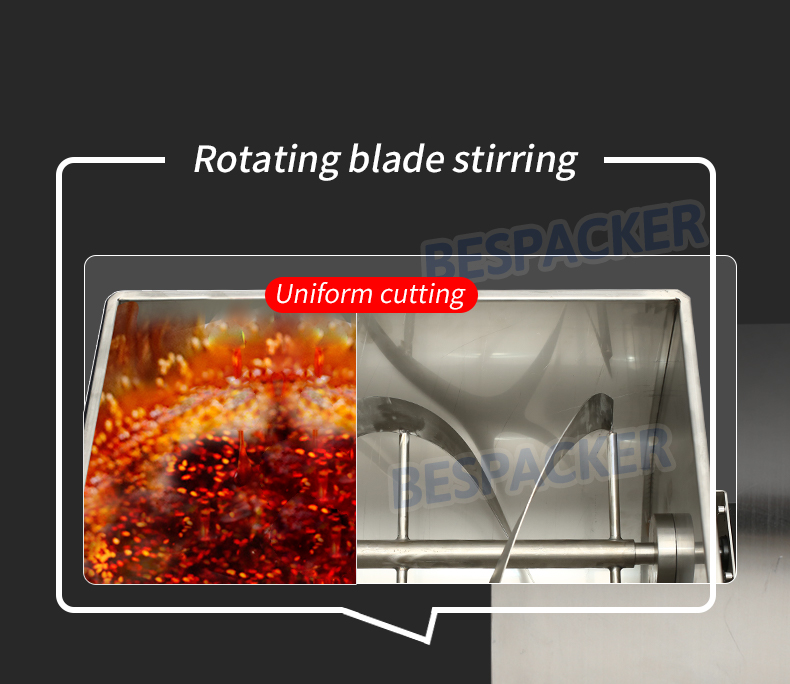

Hopper mixing & Hopper Heating function optional

G1WGD-mixer--------Stirring and heating liquid and paste filling machine for cream shampoo, cosmetic, toothpaste.

1, Brief introduction:
1.1) Paste filling machine is the automatic filling system using compressed air as power, which is composed of precision pneumatic components. The paste filling machine has the features of simple structure, reliable and convenient adjustment.
1.2) This paste filling machine also adapts to all kinds of paste, viscous paste filling. This paste filling machine can work in the inflammable and explosive environment. It is the ideal filling equipment of pharmaceutical, chemical, food, cosmetics and other industries.

2, Technical features of paste filling machine:
2.1) This paste filling machine is semi-automatic piston paste filling machine.
2.2) This machine has reasonable structure, compact shape, convenient operation. The pneumatic parts adopts Germany FESTO and Taiwan AIRTAC starting component.

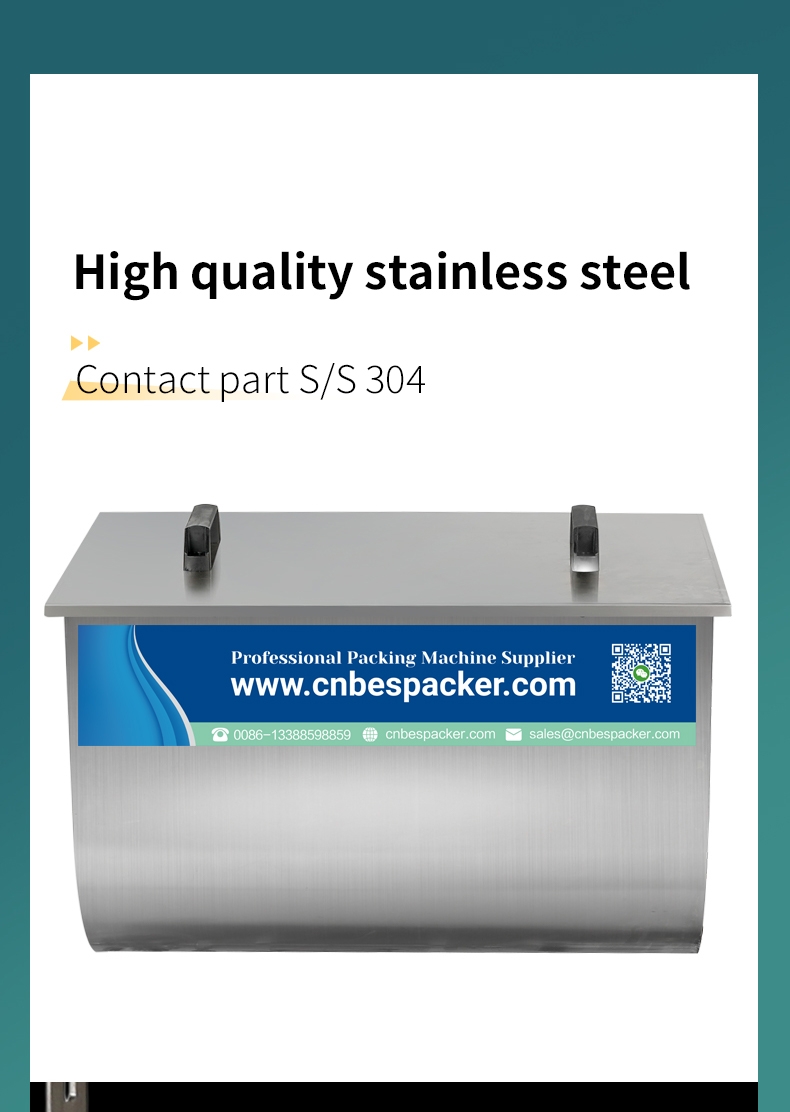

2.3) The fact that the part in contact with the material is made of 316# stainless steel, which brings qualified anti-corrosion performance, meeting with the GMP standard.
2.4) Filling volume and filling speed can be adjusted, and the precision is high.

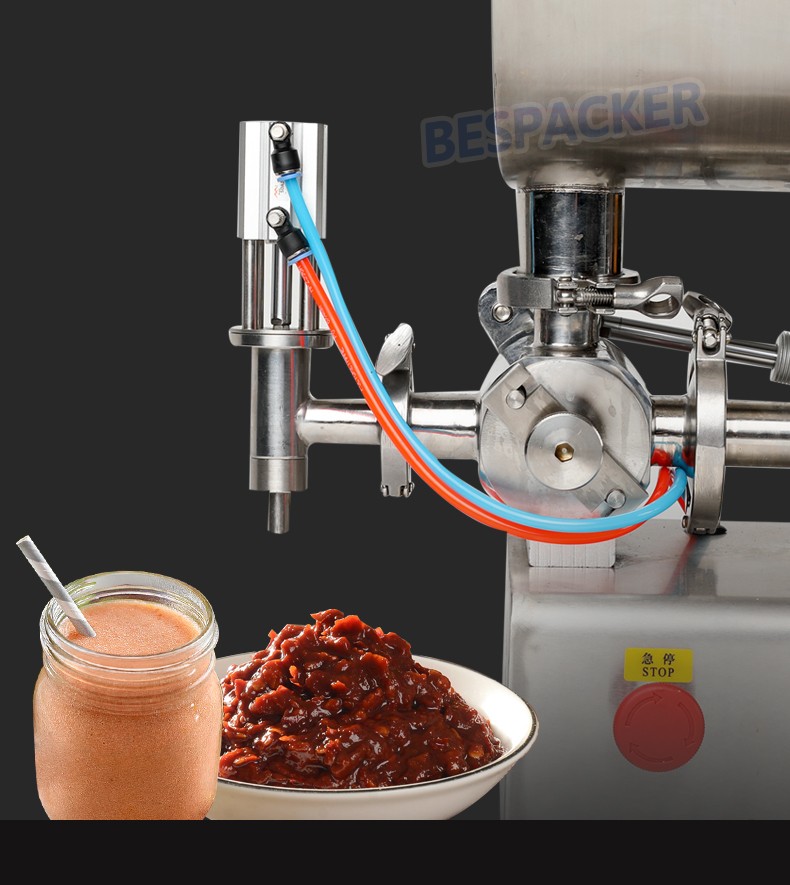

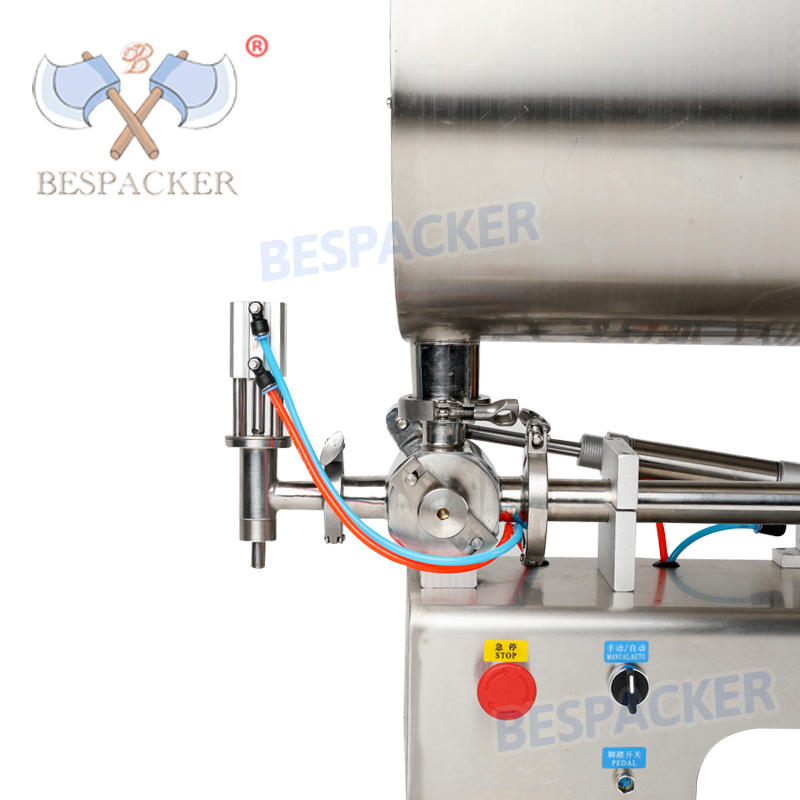

2.5) Filling head adopts anti-leakage and lifting device.
