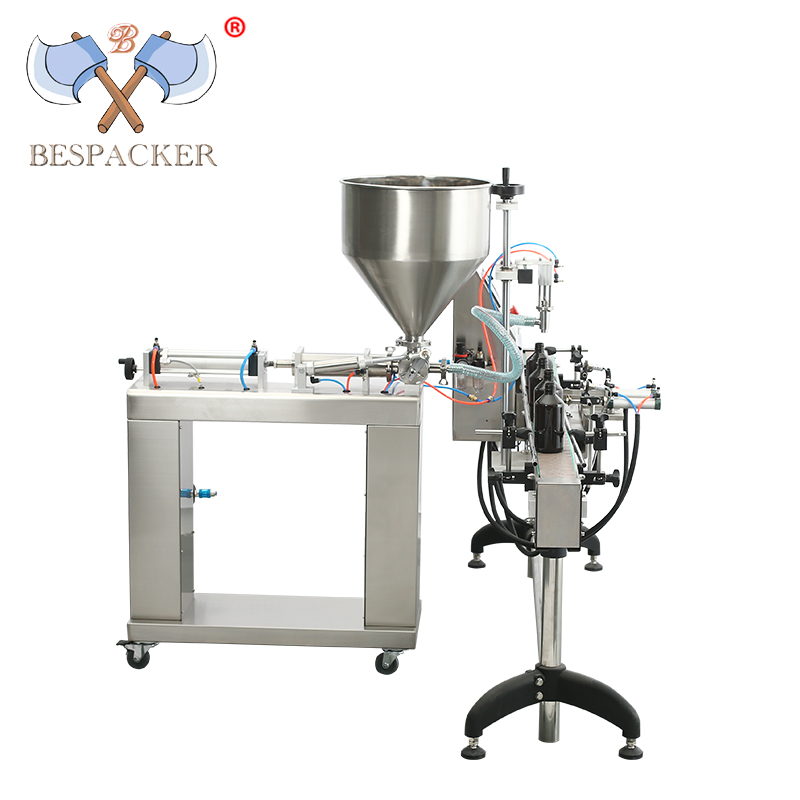

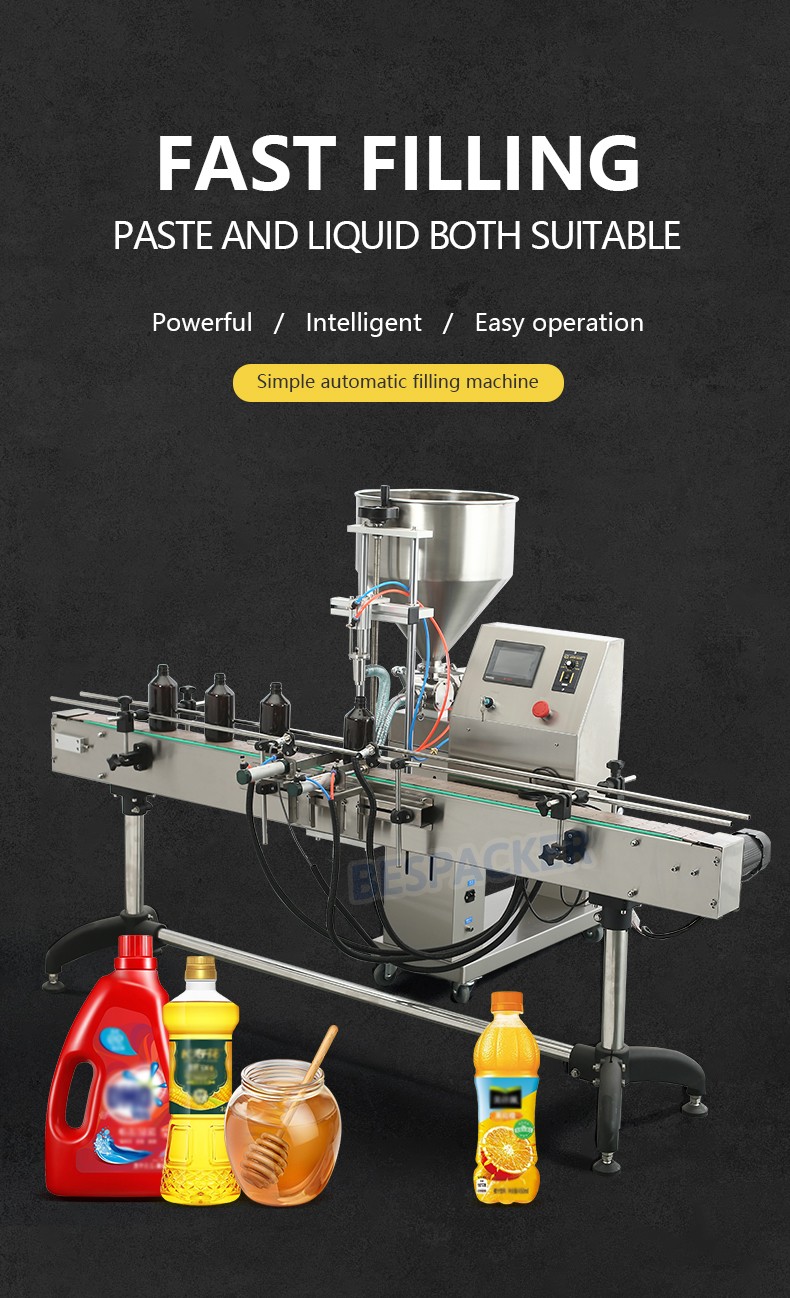

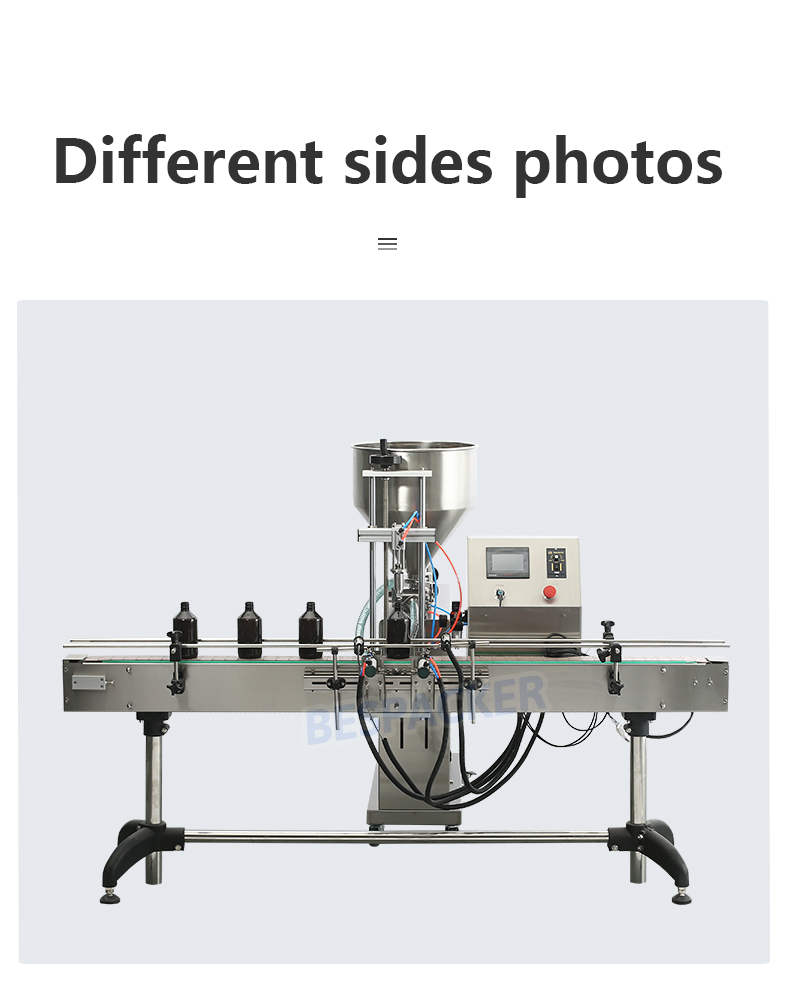

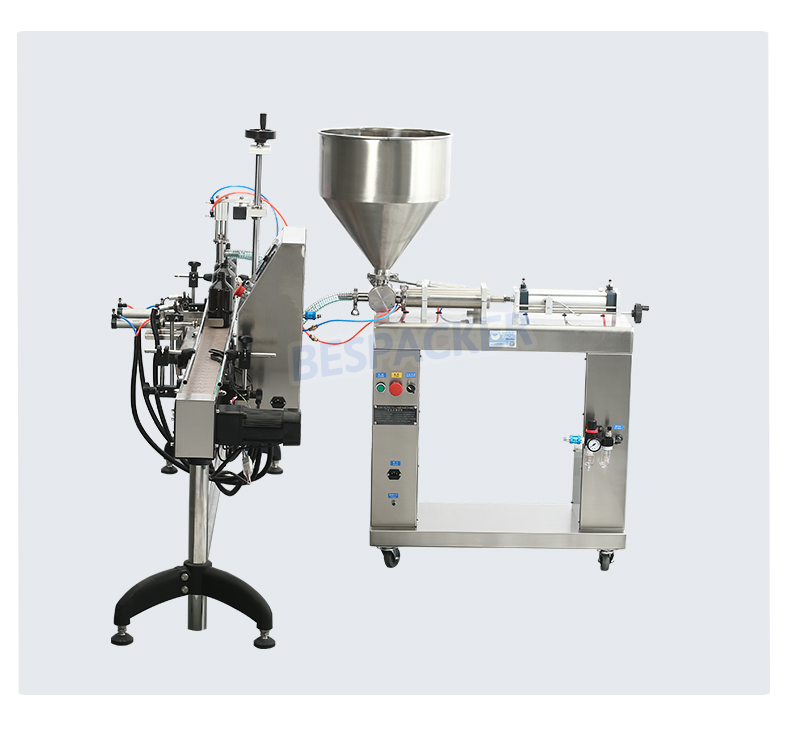

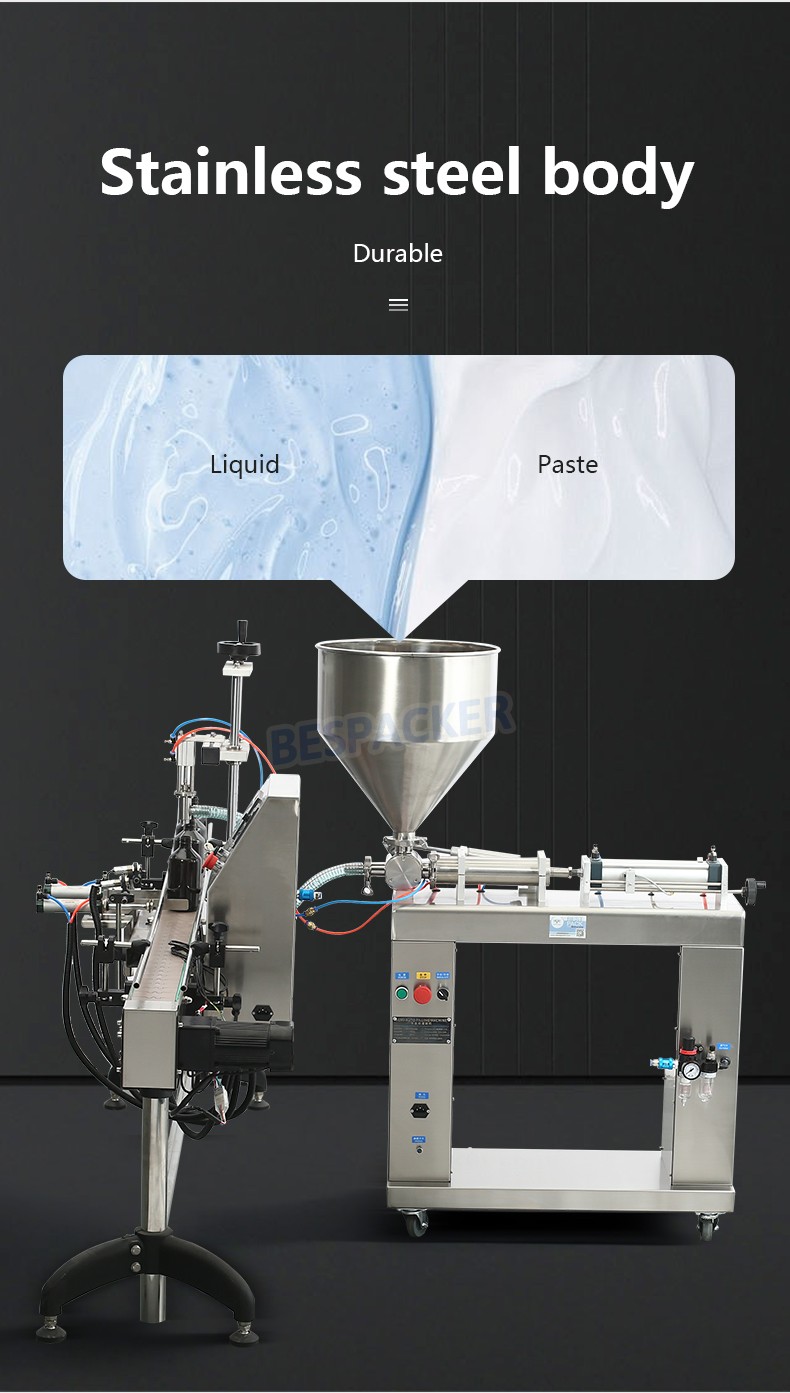

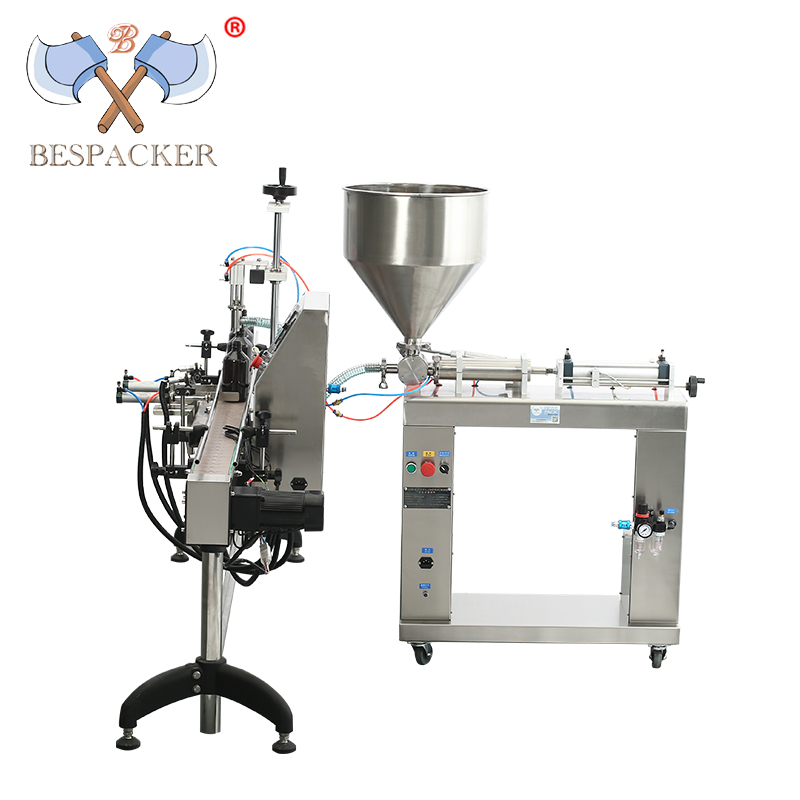

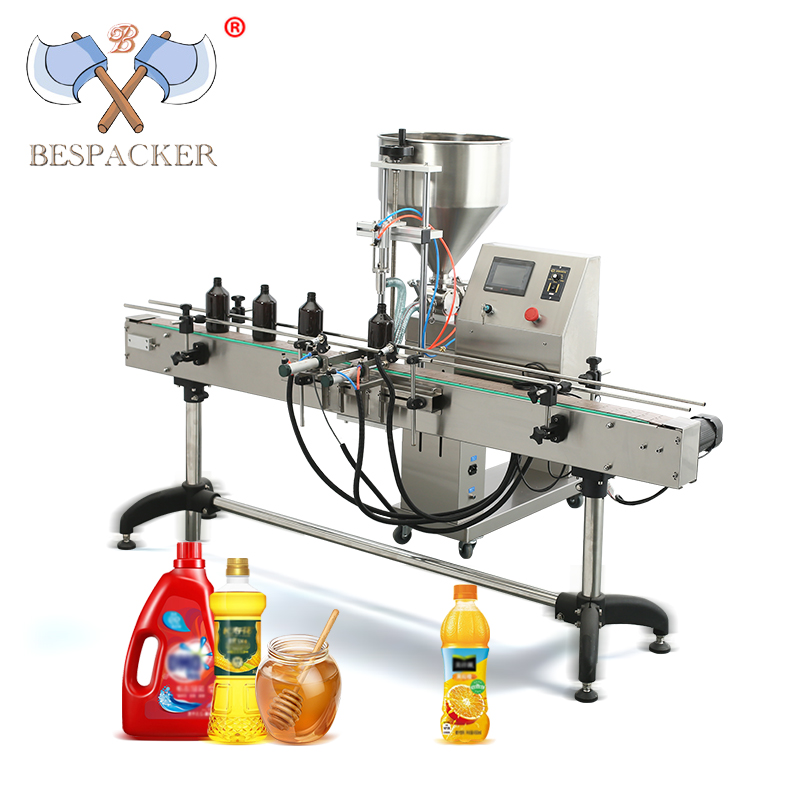

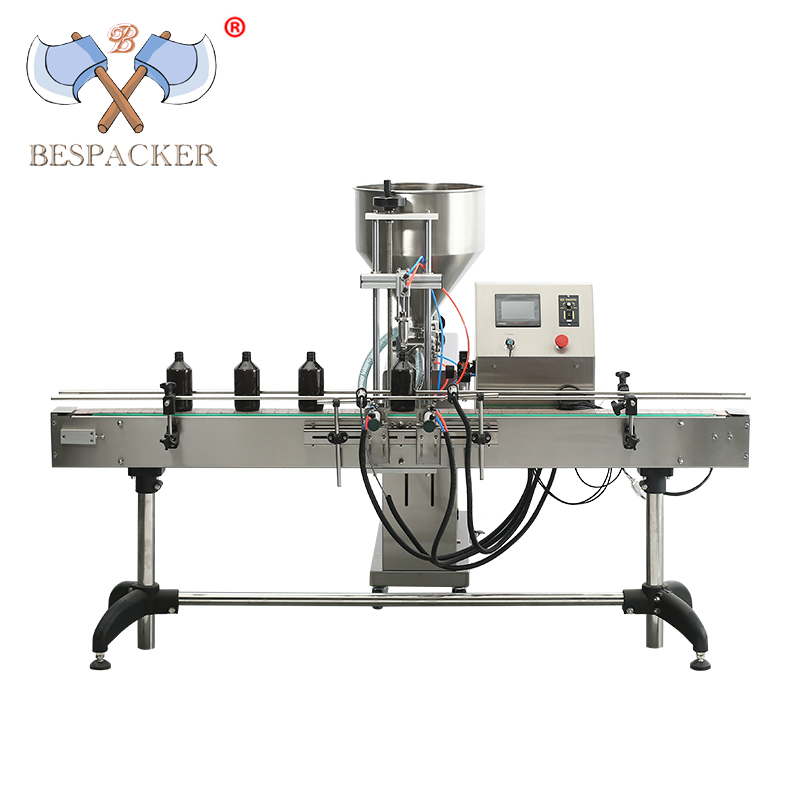

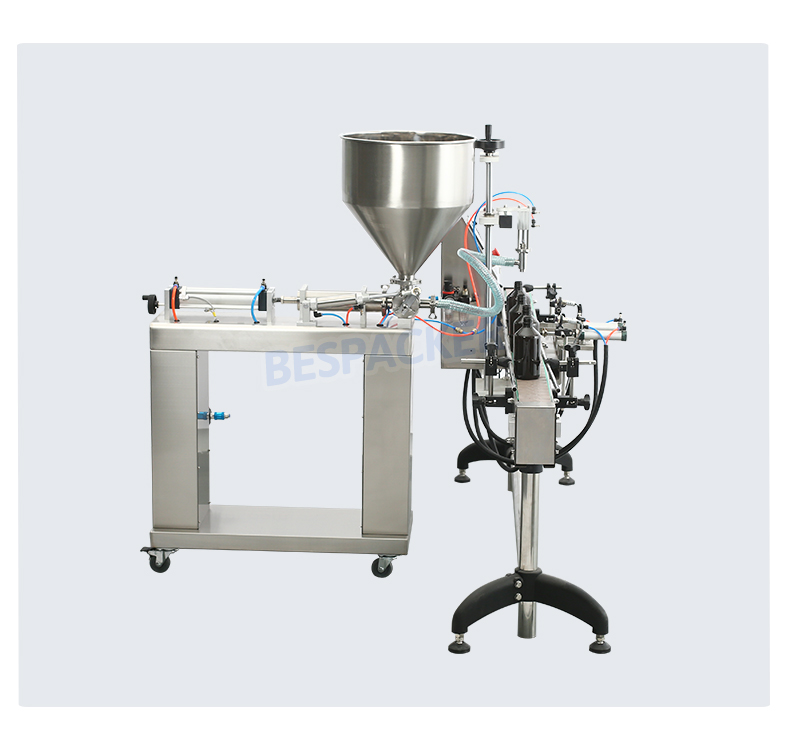

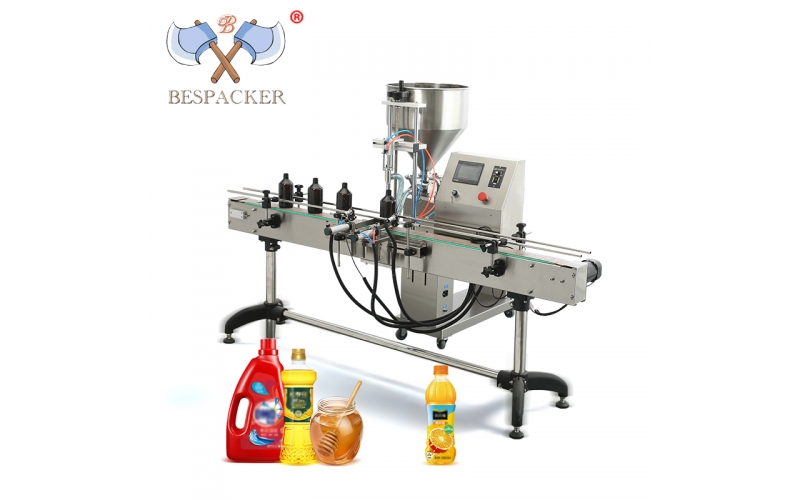

Bespacker G1WLD semi automatic paste liquid detergent soap filling machine with conveyor

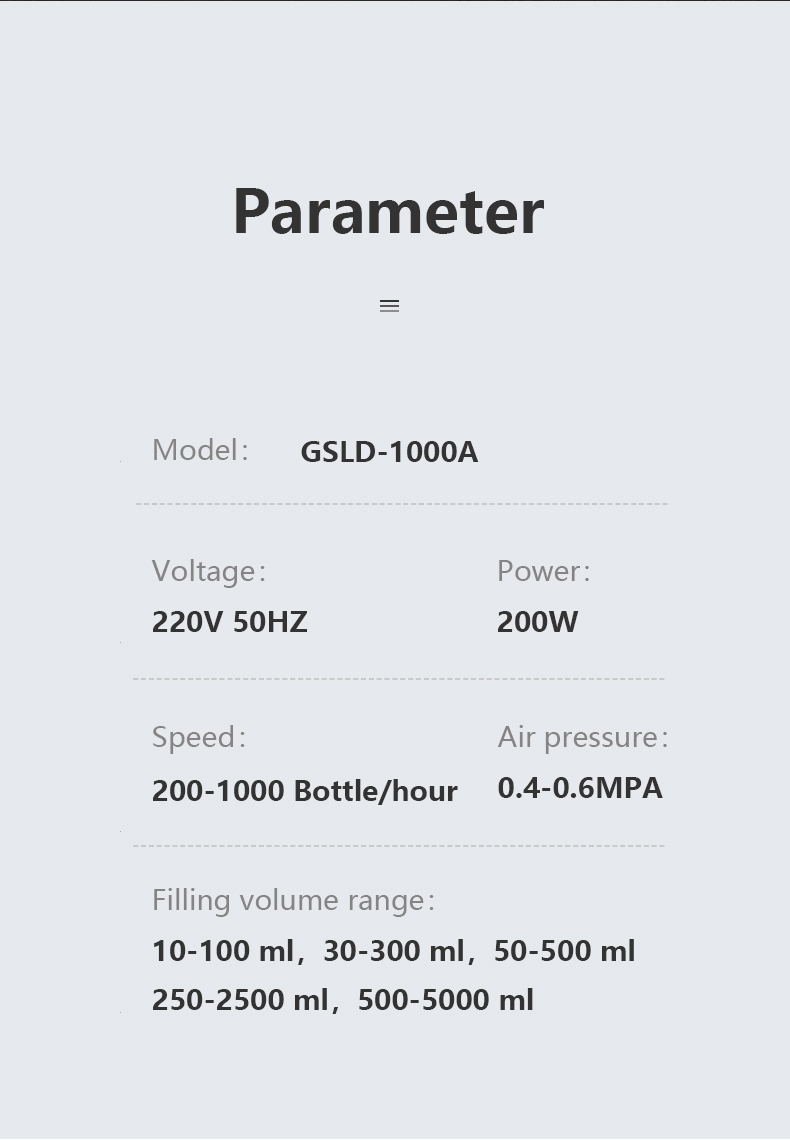

Description of parameters of filling machine:

Model

Voltage

Filling volume

Filling speed

Filling accuracy

Dimension

Weight

Type of packages

G1WLD

110V/220V

5-100ml

1-30bottles/min

≤±1%

97*45*100.5cm

56kg

Plywood boxes

10-300ml

96*55*140cm

60kg

Plywood boxes

50-500ml

96*55*140cm

60kg

Plywood boxes

100-1000ml

96*55*140cm

65kg

Plywood boxes

500-2500ml

109*55*138cm

70kg

Plywood boxes

1000-5000ml

109*55*138cm

80kg

Plywood boxes

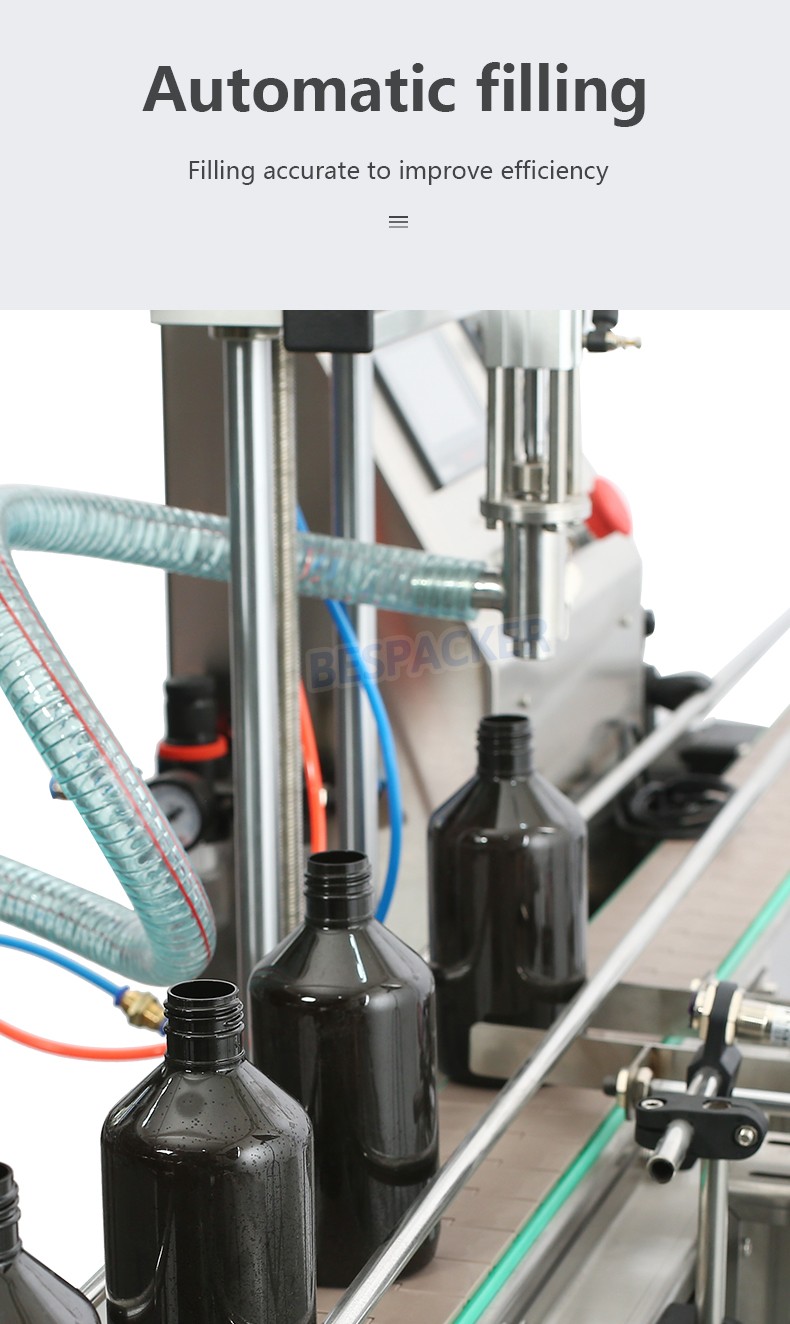

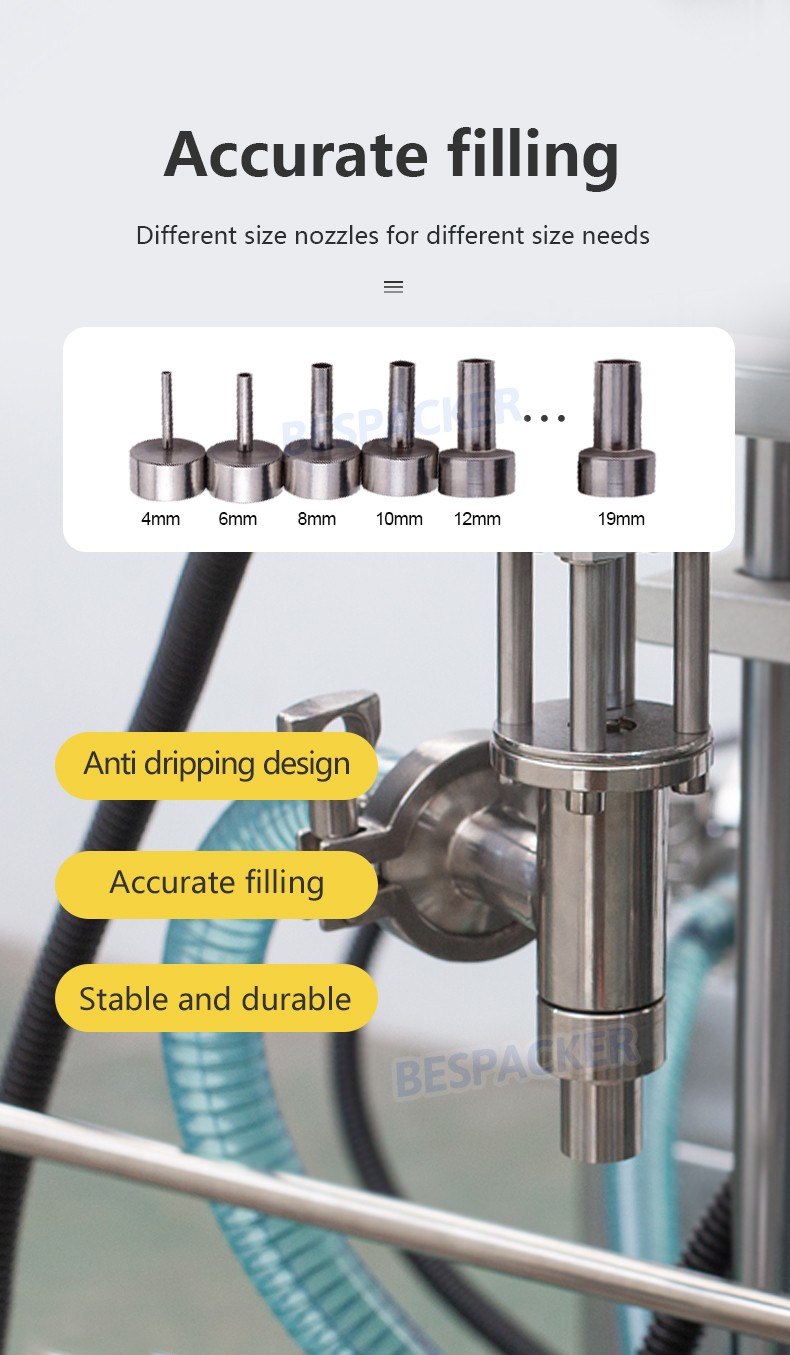

Precise metering control.
Filling machine with fixed flow channel parameters, control the filling time to achieve different measurement of filling.
A. Pneumatic valve filling precise time can be set to 0.01 seconds, the measurement accuracy can be controlled in the ± 1% error range, reducing unnecessary material loss, improve user economic benefits.
B.  The volume of filling, can adjust the initial filling to the required volum, and then fine-tuning, you can get the ideal filling machine measurement accuracy.

Working principle: table type liquid single head filling machine is a high viscosity flow filling machine developed by our company, it is to extract and made of high viscosity material to drive the three pass principle of a piston and rotary valve through the cylinder, and use magnetic switch to control the cylinder stroke, which can adjust the filling volume.
